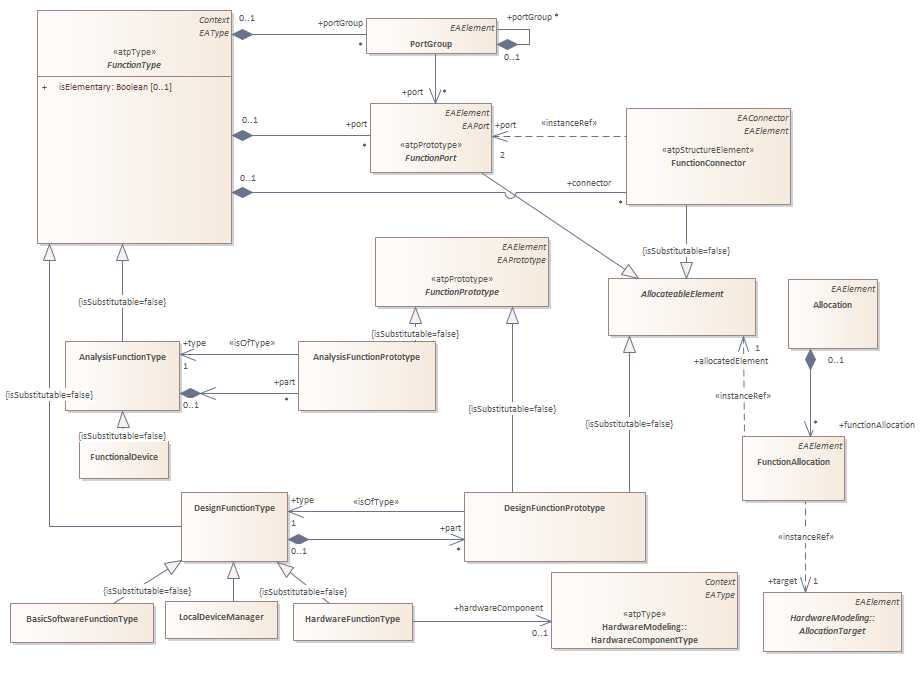

FunctionModeling : Class diagram
Diagram for FunctionModeling showing the concepts for function modeling at different abstraction levels, elements in the DesignLevel are allocateable on elements in the hardware design architecture.<br/>
